3/8″ Insulated Hexagon Socket with Double-hex（3/8注塑绝缘十二角套筒）
Product Overview
3/8‑drive insulated double‑hex (12‑point) socket, cold‑forged from premium 50BV alloy steel. Each socket passes 10000V high‑voltage test and complies with DIN‑EN/IEC 60900:2018 safety standard. Designed for live‑line disassembly and assembly of hexagon fasteners, compatible with 3/8″ drive insulated ratchet handles, widely used in electrical equipment and industrial maintenance.
Core Product Specifications
| Item | Specifications |
|---|---|
| Product Name | 3/8″ Insulated Hexagon Socket with Double-hex |
| Material | High‑quality cold‑forged 50BV alloy steel |
| Safety Standard | DIN‑EN/IEC 60900:2018 |
| High‑voltage Test | 10000V tested |
| Application | Live‑line operation, electrical & industrial equipment maintenance |

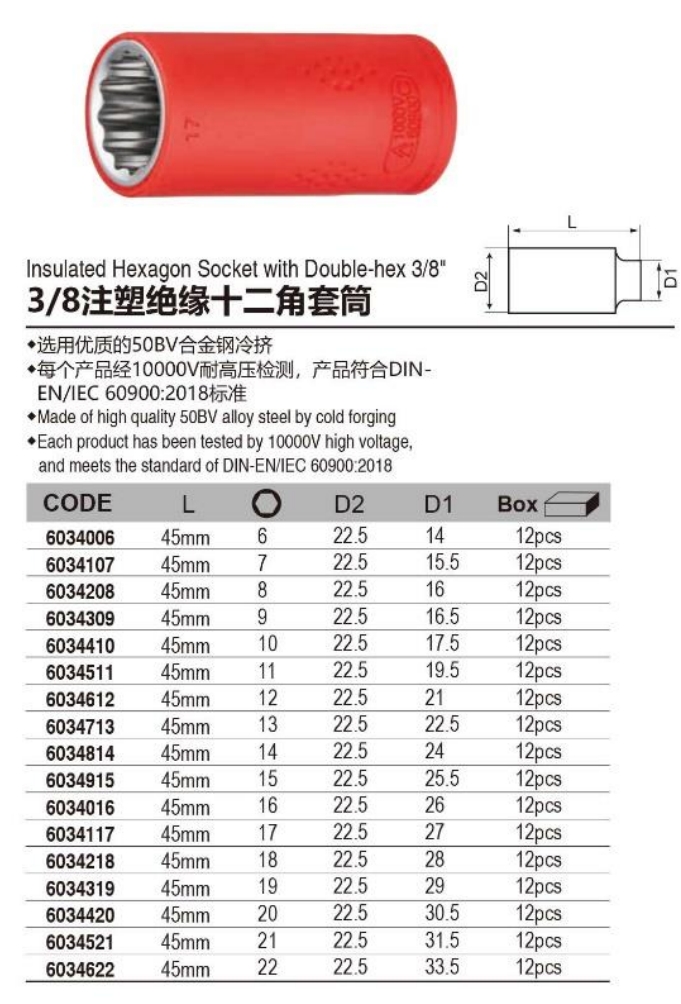

Item‑by‑Item Specification Table
| Code | Overall Length(L) | Hex Size | D2 | D1 | Box Qty |
|---|---|---|---|---|---|
| 6034006 | 45mm | 6 | 22.5 | 14 | 12 pcs |
| 6034107 | 45mm | 7 | 22.5 | 15.5 | 12 pcs |
| 6034208 | 45mm | 8 | 22.5 | 16 | 12 pcs |
| 6034309 | 45mm | 9 | 22.5 | 16.5 | 12 pcs |
| 6034410 | 45mm | 10 | 22.5 | 17.5 | 12 pcs |
| 6034511 | 45mm | 11 | 22.5 | 19.5 | 12 pcs |
| 6034612 | 45mm | 12 | 22.5 | 21 | 12 pcs |
| 6034713 | 45mm | 13 | 22.5 | 22.5 | 12 pcs |
| 6034814 | 45mm | 14 | 22.5 | 24 | 12 pcs |
| 6034915 | 45mm | 15 | 22.5 | 25.5 | 12 pcs |
| 6034016 | 45mm | 16 | 22.5 | 26 | 12 pcs |
| 6034117 | 45mm | 17 | 22.5 | 27 | 12 pcs |
| 6034218 | 45mm | 18 | 22.5 | 28 | 12 pcs |
| 6034319 | 45mm | 19 | 22.5 | 29 | 12 pcs |
| 6034420 | 45mm | 20 | 22.5 | 30.5 | 12 pcs |
| 6034521 | 45mm | 21 | 22.5 | 31.5 | 12 pcs |
| 6034622 | 45mm | 22 | 22.5 | 33.5 | 12 pcs |
Package Information
| Package Includes | Quantity |
|---|---|
| Insulated Double-hex Sockets | 12 pcs per box |
Note: Standard boxed bulk packing, suitable for project tender and wholesale procurement.
